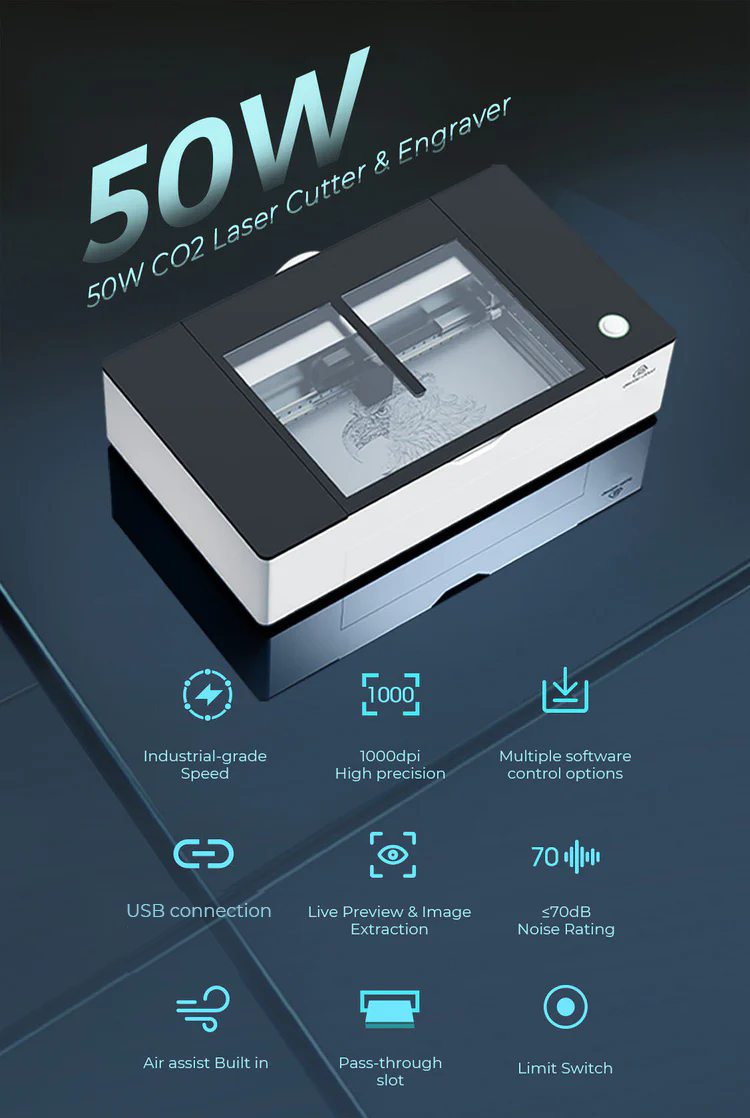

Découpeur et graveur laser CO2 gweike cloud 50 W avec rotation Pro II
Découpeur et graveur laser CO2 gweike cloud 50 W avec rotation Pro II
Découpeur et graveur laser CO2 gweike cloud 50 W avec rotation Pro II
Découpeur et graveur laser CO2 gweike cloud 50 W avec rotation Pro II
Découpeur et graveur laser CO2 gweike cloud 50 W avec rotation Pro II
Découpeur et graveur laser CO2 gweike cloud 50 W avec rotation Pro II
Features Videos

Découpeur et graveur laser CO2 gweike cloud 50 W avec rotation Pro II

Découpeur et graveur laser CO2 gweike cloud 50 W avec rotation Pro II

€1.939,00
€1.939,00
Vente Épuisé
Product Parameters
×
Laser Power CO2 laser 50W
Machine Dimensions 38.2"*22.2"*9.2" (970mm*565mm*234.5mm)
Processing Area 20.08" (510mm)*11.8" (300mm)
Maxinum working height 20"(51mm)

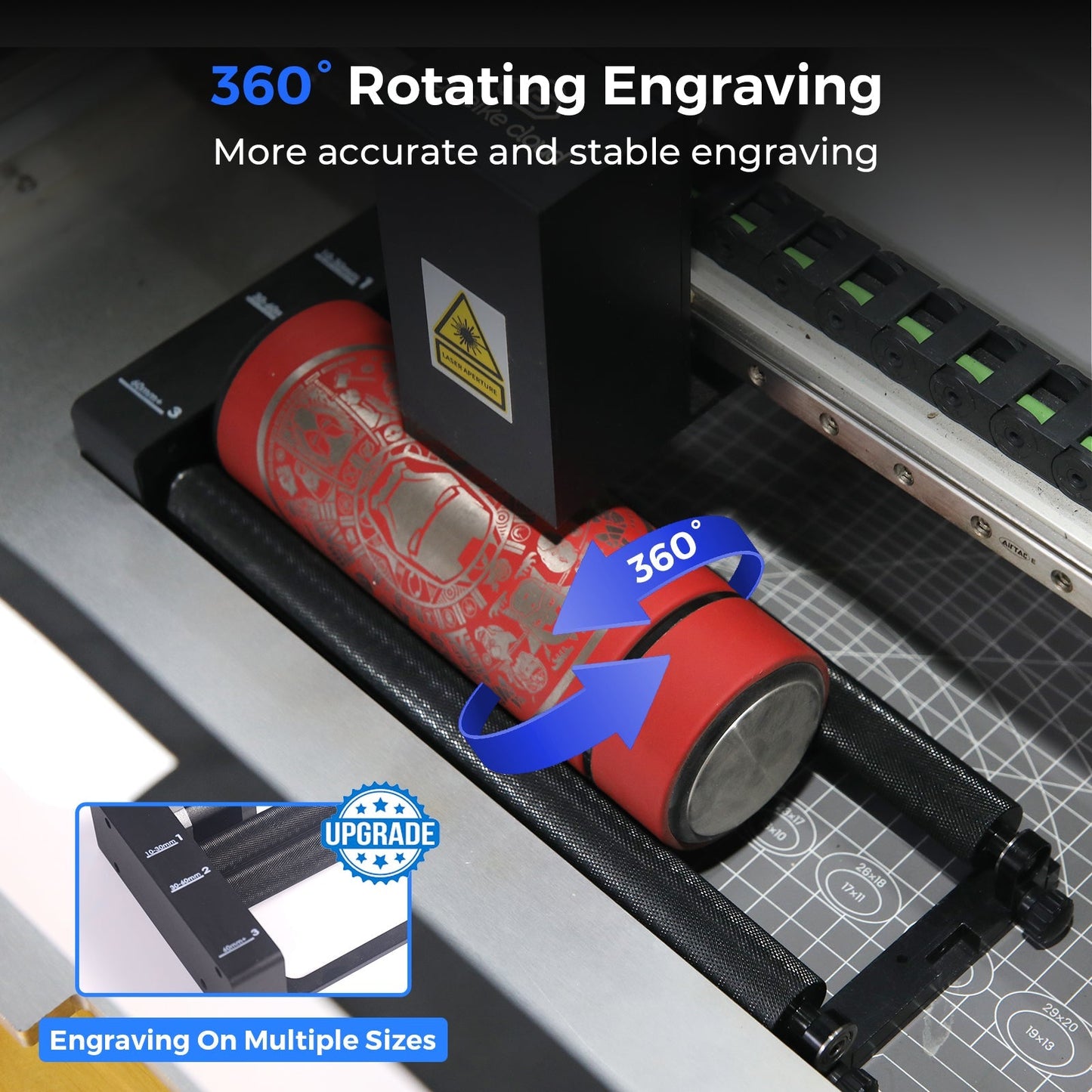

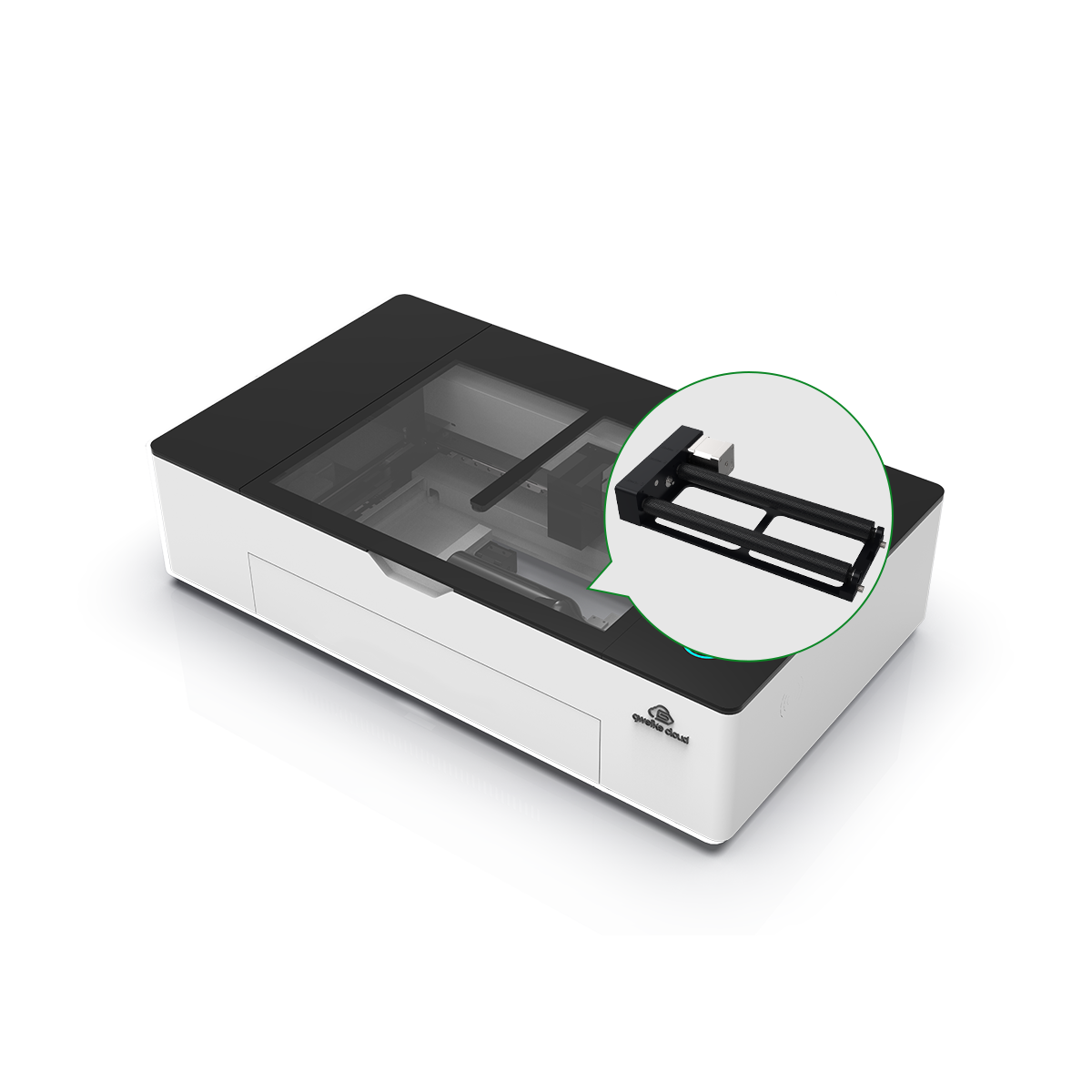

Rotary Engraving diameter 30mm-74mm
Rotary Engraving Length ≤245mm
Camera support
Weight 42.6kg
software Gweikecloud Web Based,Gweikecloud Offline, Lightburn
Connection / Transmission Wi-Fi, USB, Ethernet
Supported File Type SVG, DXF, JPG, JPEG, PNG, BMP, TIF, CR2, etc.
Power Supply AC 110-220V±10%,50-60Hz
Gross Power 550W
Noise Rating ≤70dB

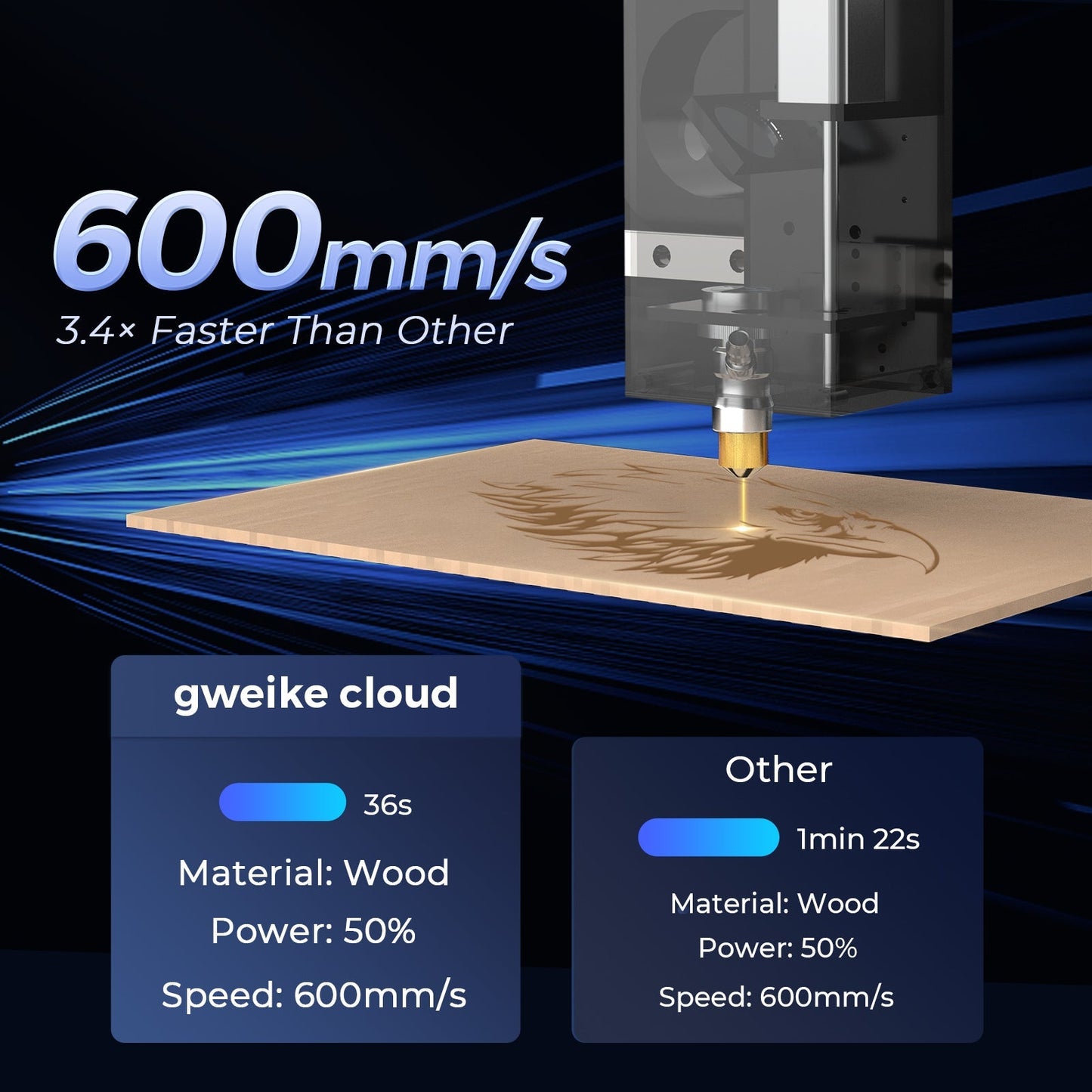

Max. Carving Speed 600mm/s
Precision 0.001” (0.025mm)
Laser Tube Life 10000 hours
Payments:
PayPal Visa Mastercard American Express Discover JCB Klarna Affirm Google Pay Apple Pay

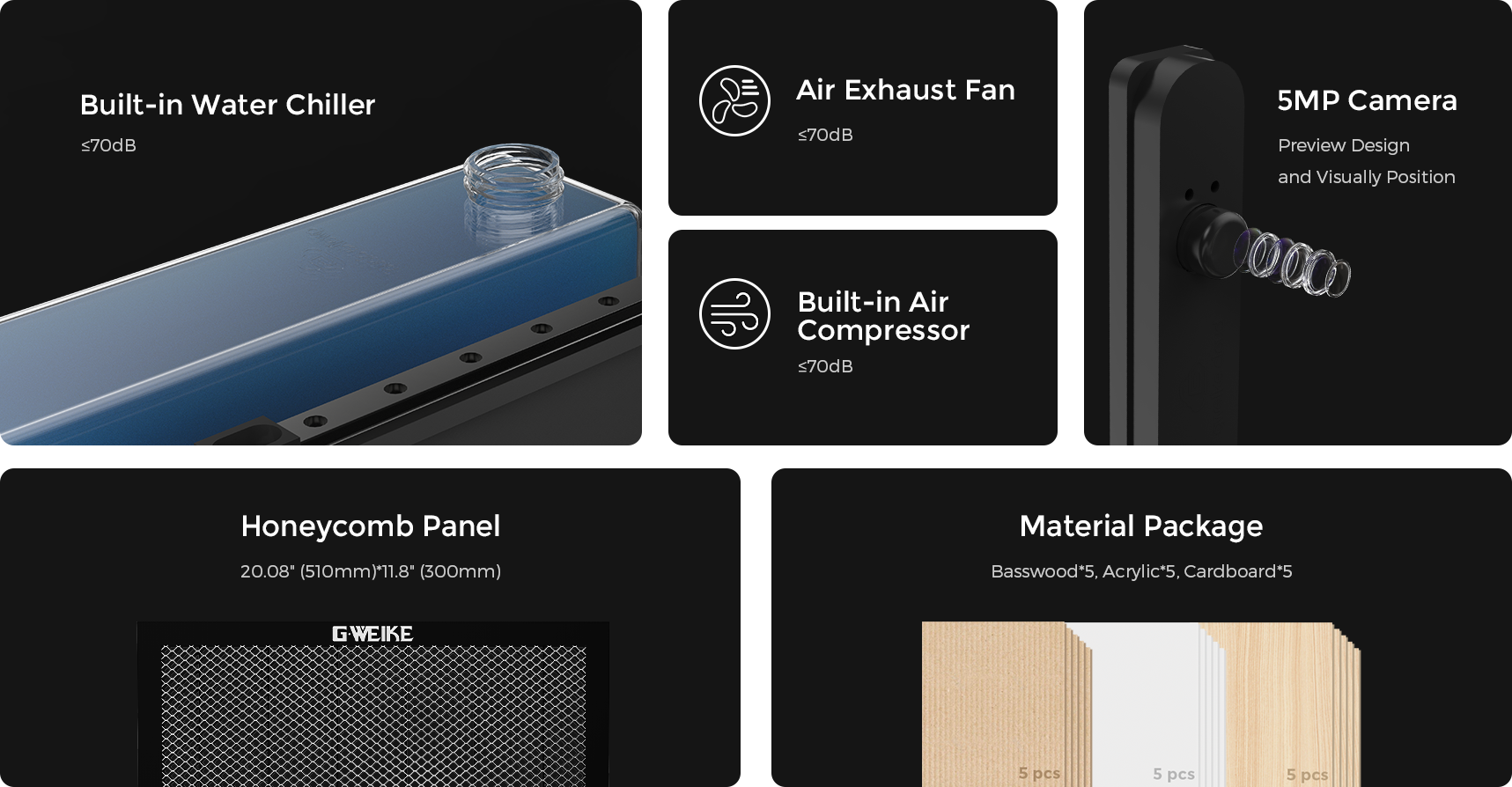

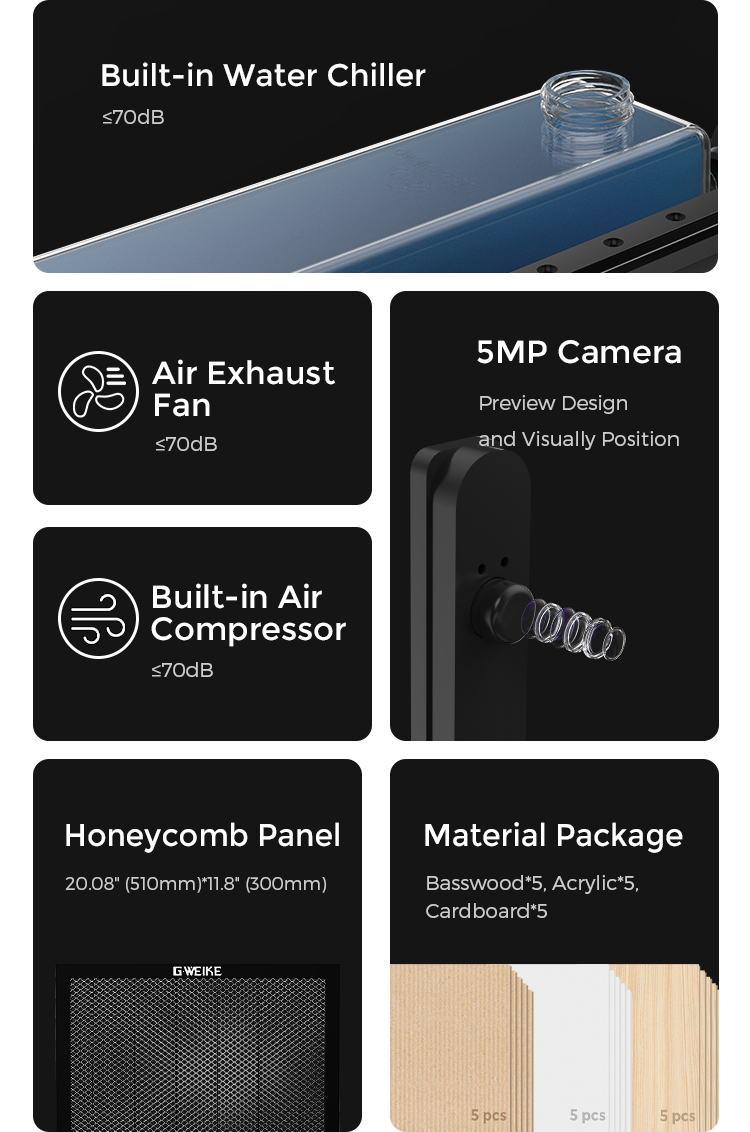

  • 1. Refroidissement à eau intégré, ≤70 dB
  • 2. Ventilateur d’échappement d’air, ≤70 dB
  • 3. Compresseur d’air intégré, ≤70 dB
  • 4. Appareil photo de 5 MP, prévisualisation de la conception et position visuelle.
  • 5. Panneau en nid d’abeille, 20,08" (510 mm)x11,8" (300 mm)
  • 6. Ensemble de matériaux : Bois de tilleul*5, Acrylique*5, Carton*5
  • 7. Logiciel Web Gweike Cloud avec bibliothèque de conception en ligne gratuite et mise à niveau de la carte mère de contrôle
Afficher tous les détails

Package List

Sparkle Your Creation with Gweike cloud Materials

make art out of acrylic, wood, rubber, leather, metals and more
  • Plywood
  • Acrylic
  • Leather
  • Coating Metal
  • Paper
  • Rock
  • Food
  • Rubber

Material: MDF

Power: 80%

Speed: 600 mm/s

Industrial Frame Design

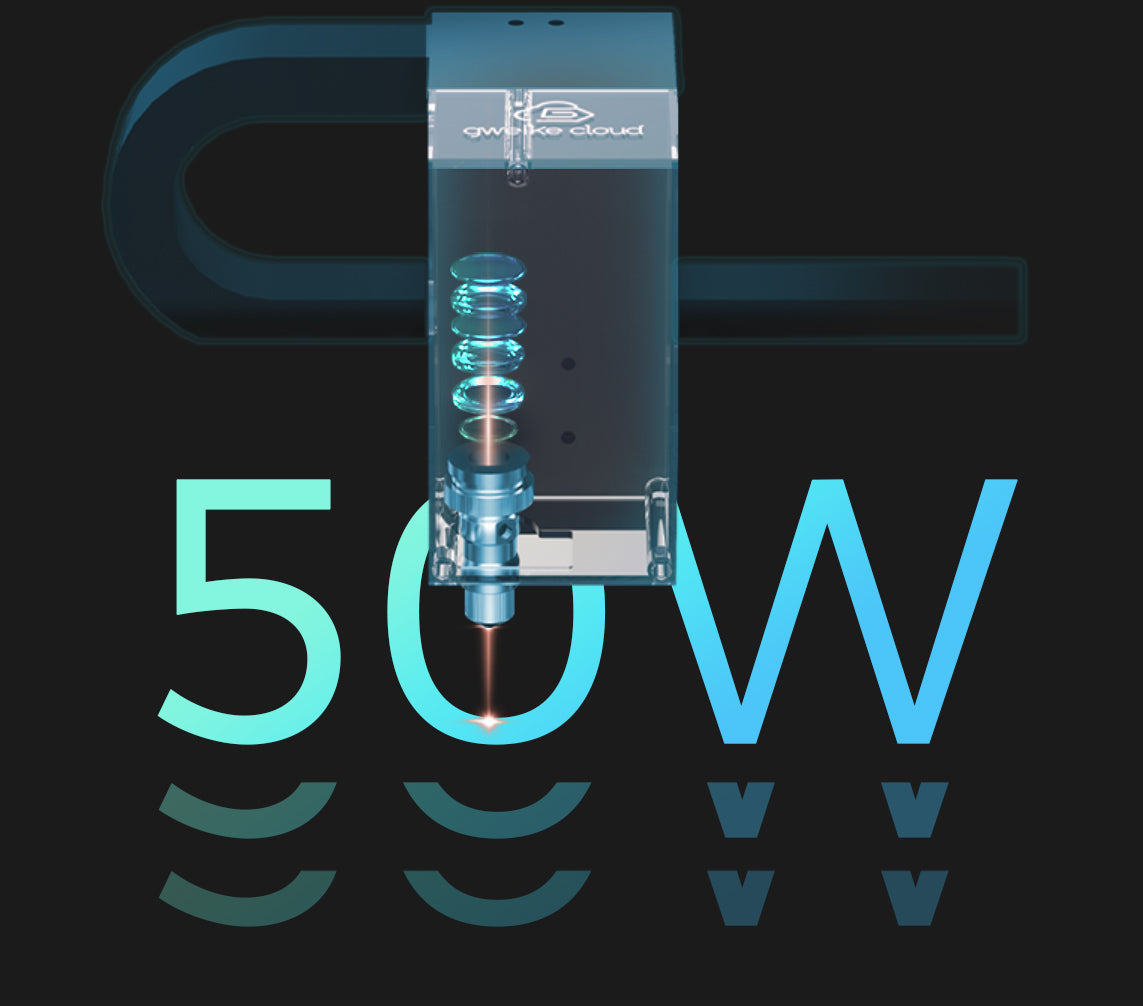

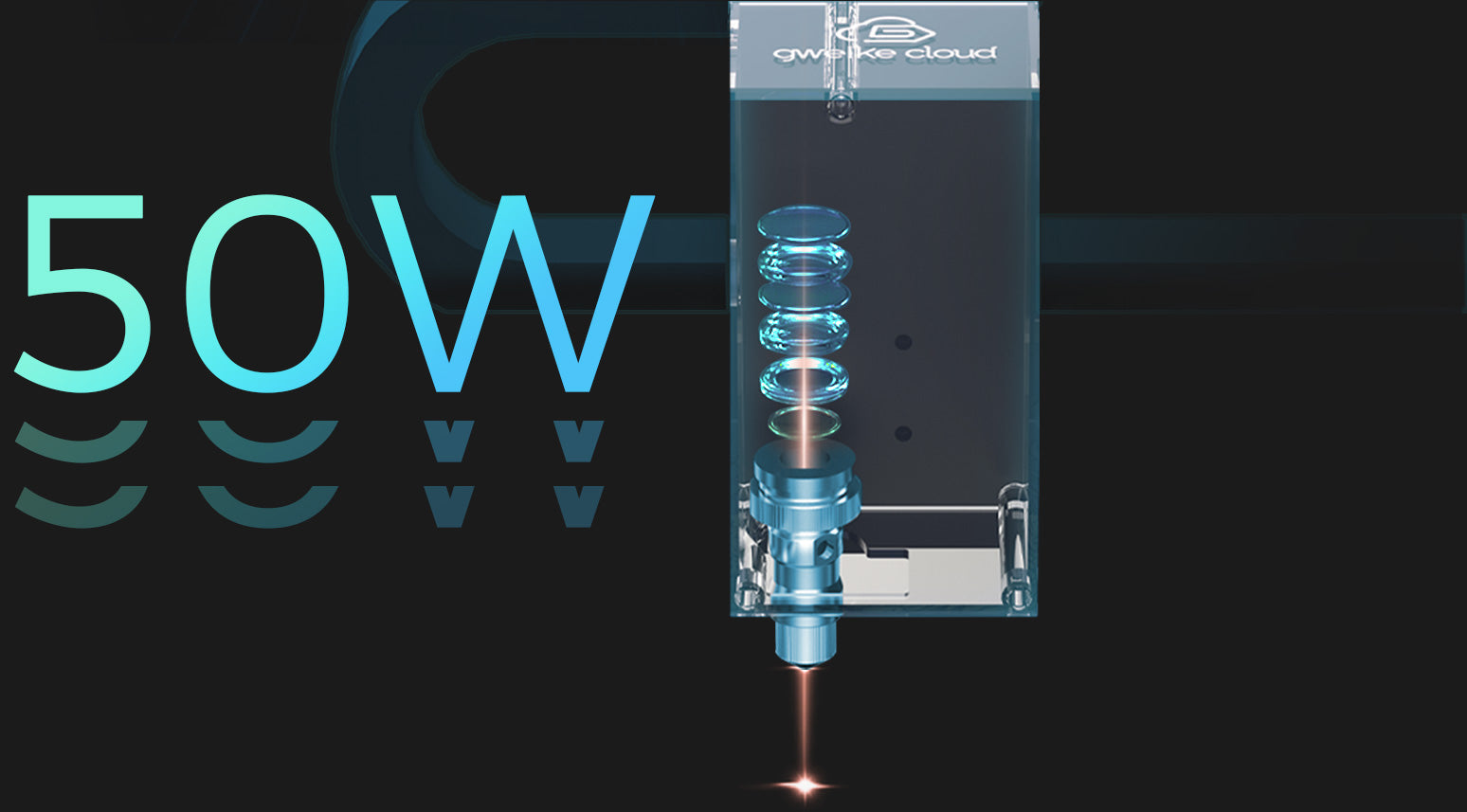

Easy to Focus, Precise & Quick

Easy to Focus, Precise & Quick

LIGHTBURN

Uses the industry standard layout, editing, and control software, LightBurn, to ‘talk’ directly to your laser without the use of additional software.

Venting System

The wind rate is significantly improved and the wind volume is larger. Easier to remove smoke and exhaust fumes. Effectively solve the gas retention caused by the production process.

Noise-canceling

During normal printing, gweike cloud has an average noise level of about 70 dB(A). Equipped with a much quieter fan the speed can be adjusted automatically according to the real-time temperature, realizing a noise level decrease of about 16 dB(A)[3], so that you can truly focus on your making.

What Other Advantages?

3D Engraving

It can engrave on sphere, tilt plane, curved surface and different height object. It can create 3D image on diamond,woods, and acrylics ,etc.

  • 3D Engraving

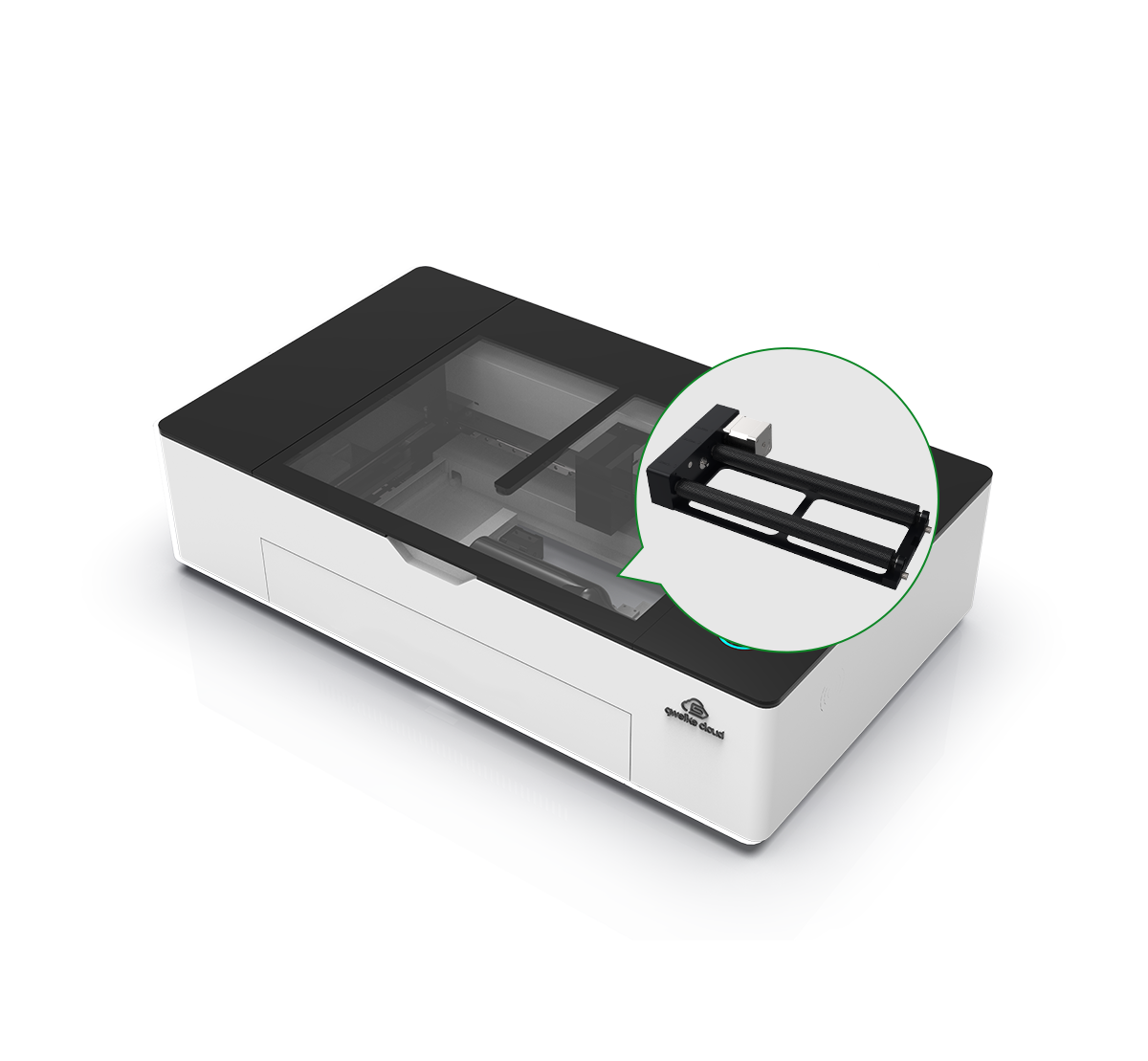

  • Machine Bottom Feeding Design

Details- What Are Included

Specs Summary

  • Tech Specs
  • gweike cloud VS glowforge
  • Material Cuts & Engraves
  • Delivery Time
Laser System

Laser Power 50W

Laser Type CO₂ Glass Laser Tube

Lifespan 10000h

Safety Guard Class I (FDA Certified)

Work Area

Work Table Area 20.08" (510mm)*11.8" (300mm)

Max. Workpiece Height(without honeycomb tray) 2''（51mm)

Work Table Surface Black (Special surface finishing technique helps reduce burn marks or discoloration)

Materials Processing

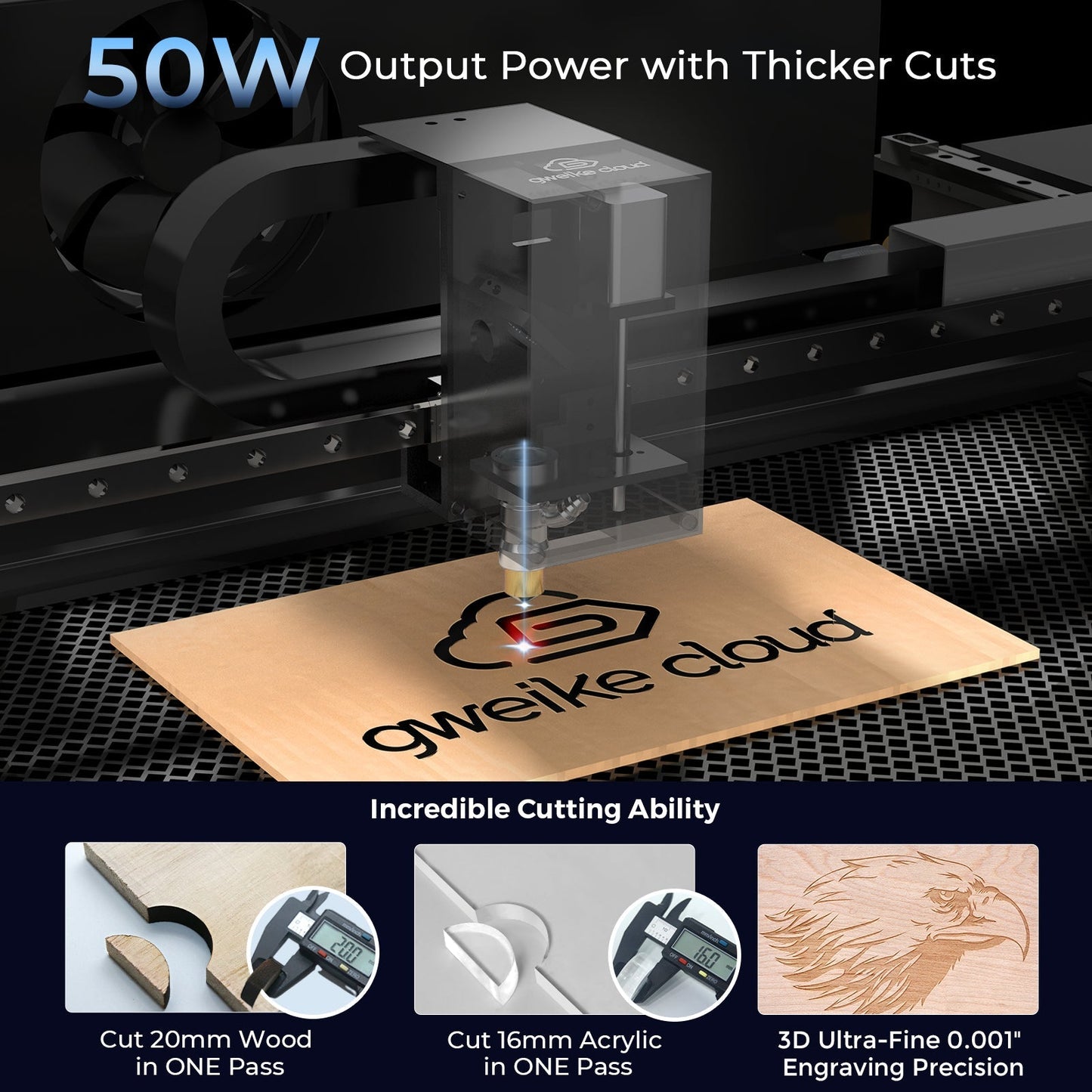

Max. Cutting Depth 0.59''（15mm） Basswood

Max. Carving Speed 600mm/s

Carving Precision 0.001” (0.025mm)

Noise Rating ≤70dB

AI Camera Information

Focus Mode AI Visual AF/Material Recognition AF/Material Set-up AF

Camera High-resolution Ultra-wide Camera

Number of Pixels (Effective) 5MP

Visible Area 19.29'' x 11.42''

Positioning AI Visual Positioning Error range ≤ 2mm

Software Requirements

Operating Systems Windows/macOS

Control Software Gweikecloud Offline, Lightburn

Connection / Transmission Wi-Fi, USB, Ethernet

Supported File Type SVG, DXF, JPG, JPEG, PNG, BMP, TIF, CR2, etc.

Design Software AutoCAD, Solidworks, Inkscape, CorelDRAW, PowerPoint, Illustrator, Photoshop, Google AutoDraw, etc.

Environmental Requirement

Power AC 110-220V±10%,50-60Hz

Work Consumption (without fan) 550W

Nonoperating Temperature 0~45°C

Relative Humidity 5~90°C

Operating Ambient Temperature 0~35°C

Weight & Dimensions

Processing Area 20.08" (510mm)*11.8" (300mm)

Machine Dimensions 38.2"*22.2"*9.2" (970mm*565mm*234.5mm)

Weight 42.6kg

Supported Accessories

Cameras: 5 MP ultra-wide-angle camera wide angle & macro √

Full autofocus √

Water Chiller √

Dual high-efficiency internal LED strips √
